★The mobile sentry trailer evidence collection system integrates
cameras, AI video analysis terminals, lighting systems, lifting
systems, transmission and storage systems, energy storage and power
supply systems, trailer bodies, control systems, etc. into an
integrated design;
★The camera uses 2 high-definition PTZ IP cameras, Resolution
1920*1080, 20x /30x optical zoom, support 360°rotation.
★Pneumatic telescopic mast, extended height 6m.( 3 to 10m are
available)★Supports dual 4G wireless transmission and signal fusion
technology, making the video smoother and clearer .
★Built-in GPS/BD module positioning
★Supports dual TF card storage, with a single maximum of 256G and
up to 40 days of recording time (expandable hard drive host
storage, supports larger hard drive storage);
★Built-in 20-watt high-power speaker, wireless remote announcement
and intercom command;
★Supports expanded face recognition or face recognition,safety
helmet detection, smoking detection, reflective detection and mask
detection functions.
★Supports both with and without network, the system supports
detection and recognition of faces, warning alarms and calling
names, and also supports detection of not wearing a safety helmet,
smoking and reflective clothing.
★Support front-end on-site prompts for unstandardized behavior,
remote platform real-time snapshots and videos and alarm reminders.
★Supports a variety of energy renewal methods, including solar
energy, mains power, wind energy, etc.;
★Adopts 2*120W LED super light source, with a total power of 240
watts;
★The lighting supports up and down rotation of 320 degrees on any
one side, and supports 380 degree rotation on the left and right;
★Solar panel 4*200W, total 800W. enabling all-weather uninterrupted
work;
★ Battery 4*150Ah, DC12V, Gel battery. Battery capacity are
customized.
★Supports privatized platform deployment, supports multi-platform
access, supports docking with OKAF dynamic forensics
platform,mobile AI management platform, and supports GB28181;
★Customized mobile monitoring and command platform supports
computer client, IE and mobile APP viewing and control, and
supports command center multi-screen real-time preview, image
capture and recording, main and sub-stream switching display, and
instant playback. 4G, WIFI and LTN multiple signal transmission
modes, data transmission is safe and smooth；
★The products comply with ISO9001, environmental protection 14001
and other certification systems, MA/ilac-MRA/CNAS test reports and
new invention patents and appearance patents, etc.;
★Using 2-wheel 17-inch high-speed tires, the fastest speed can
reach more than 80 yards, which is safer;
★Equipped with a spare tire and supports the installation of fire
extinguishers and other accessories;
★The front of the truck supports folding and suspension to
facilitate storage and transportation;
★4 sets of safety pull-out support legs, height adjustable to
prevent tilting and tipping;
★Supports manual braking system and electronic brake tail light
warning.

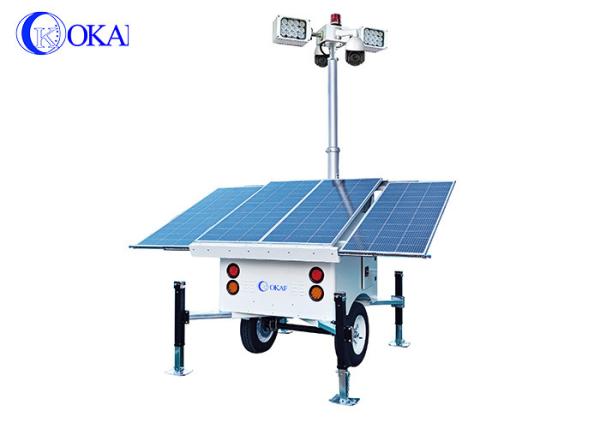

Advantages of Mobile Solar Surveillance Trailer Light Tower
● Support remote real time video viewing and control, understand
the situation at any time and anywhere.
● With loud speaker, support two way audio.
● Supports intrusion alarm, when strangers comes near the tower, it
will give an alarm automatically.
● Expand the functions of face recognition, safety helmet
detection, reflective clothing detection, smoking detection,
temperature and humidity monitoring, dust monitoring and other
functions.● LED lights pan rotation 360°, Tilt rotation 230°. Support
unilateral rotation, synchronous rotation.
● LED lights brightness is adjustable.
● With MPPT solar controller, support battery information remote
monitoring.
● Customized remote control telescopic mast up and down.
Technical data
Model | OK-PRO7-AI-LED |
Camera parameter |
Sharpness | 20x Optical zoom 1920×1080P |
Frame rate | 25/30 fps |
Audio and video frequency compression | H.264/H.265 |
Horizontal and up and down angles | Pan range 360°,tilt＋0°～－90° |
resolution | 1920×1080P |
focal length | F=5.4~108 mm (customizable) |
AI intelligent analysis |
AI intelligent analysis | Face recognition, safety helmet detection, smoking detection,
reflective detection and mask detection, etc. |
Docking platform | OKAF dynamic forensics platform, mobile AI management platform,
supports GB28181 |
LED parameter |
Indicate | 2*120W |
Irradiation range | 120M |
Beam angle | 25° |
lumen | 24000lm |
PTZ | Supports 320° up and down rotation on any single side, and 380°
rotation on the left and right. |
Working temperature range | -20℃—65℃ |
Video recorder parameters |
Alarm Output | 2-way switching output, linked to sound and light alarm, power
outage, etc. |
Wireless transmission | Wireless bridge technology or 5G/4G transmission |
position | Supports built-in GPS/BD module and can be reported to the ministry
standard platform |
storage | Supports up to 4TB hard drive storage |
Trailer parameters |
Battery | 4*150Ah, DC12V Gel batteries |
Charging method | Mains power, solar energy, car charger input, (wind energy can be
expanded) |
Solar energy | 4*200W total 800W solar panel. MTTP solar controller |
Telescopic mast height | 3.5M-10M(Customized according to customer requirements) |
Wind resistance | Level 8 winds work normally and level 12 winds do not break. |
Trailer structure | Trailer arm |
Trailers and supports | 5 points support |
Tires and steel rims | R13/165 or R14/185or more higher |
Trailer shock absorber | Steel plate shock absorption |
Brake | Impact brake/handbrake |
Damping | Steel plate shock absorption |
Trailer style | Ring or ball type |
Low temperature work | -25℃ |
High temperature work | 65°C |
Humidity | Less than 90%(25°C) |
Rain | Intensity 6mm/min, duration 1h |
Safety | Self-locking at any height, no long-term drop-out phenomenon |
