    75mm long range Gyro stabilization thermal PTZ camera

    Ask Lasest Price
    Brand Name : OKAF
    Model Number : OK-CZ120PTZ-TLY
    Certification : CE/ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability : 100 units / month
    Delivery Time : 10~15 working days
    • Product Details
    • Company Profile

    75mm long range Gyro stabilization thermal PTZ camera

    75mm long range Gyro stabilization thermal PTZ camera

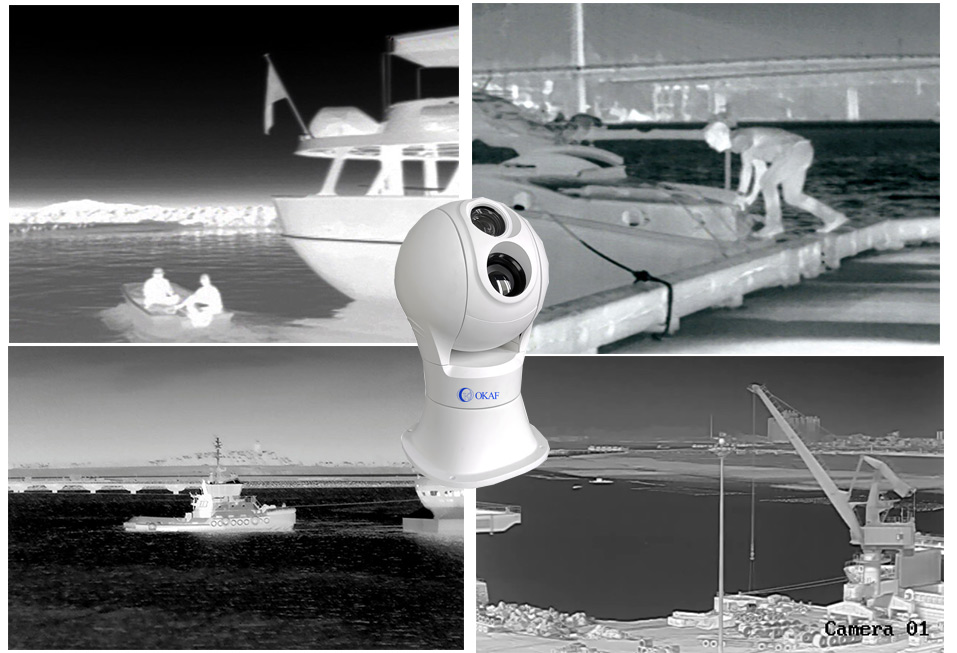

    This product integrates infrared thermal imaging and low-light telephoto cameras. It can penetrate the night and perform well in fog, haze, rain and snow, providing all-weather image monitoring. It is equipped with advanced digital circuits and image processing algorithms, which can output delicate and smooth images.


    ● Can meet the requirements for detailed observation of targets within a range of 3-5 kilometres.

    ● Optional 58x optical stabilization camera.

    ● Optional laser lighting, BeiDou, GPS and laser rangefinder functions.

    ● Adopt DD brushless motor drive, smooth running and small gap.

    ● 52x optical zoom lens with variable magnification to view detailed features of the target, support for anti-shake and optical fogging.

    ● Impact resistant, protection class IP66

    ● Spherical design, small wind resistance coefficient, can resist strong typhoons.

    ● Supports dual-axis gyro stabilization.

    ● AI: Visible light and thermal imaging simultaneously support the recognition and automatic video tracking of targets such as ships, personnel, vehicles, drones, aircraft, birds, etc. The turntable adopts stepless speed tracking, which is smooth and does not freeze. It also supports AI model deep learning function to improve recognition accuracy.


    Technical data


    ItemDescription
    Sensorsize1/1.8" CMOS
    Visible light cameraPixel4MP
    Resolution2688*1520
    Optical zoom6~312mm 52x optical zoom
    ApertureF:1.5~4.8
    Video CompressionH.265/H.264
    minimum illuminationColor:0.005Lux/F1.5 black and white:0.002Lux/F1.5
    anti-shakeSupport
    optical foggingSupport
    Day-to-Night SwitchingAuto/Manual
    AISupport ships, people, vehicles, drones, birds and other models in different scenes to train recognition and automatic video tracking function, support panoramic splicing imaging function
    Thermal cameraDetectorVanadium Oxide Uncooled Infrared Focal Plane Detector
    Resolution640*512
    Frame rate50fps
    pixel spacing17μm
    false colorSupport 10 false colors
    Bad Dot CorrectionSupport
    lens75mmF1.0 Electric focus lens, supports automatic focus and preset position
    High temperature alarmSupports high temperature hot spot detection alarm with a minimum of 2*2 pixels, and the alarm threshold can be set to 100 levels
    Heat source trackingSupport heat source tracking, centering and linkage with visible light camera to observe details by zooming
    Temperature displaySupports display of no less than 10 hot spots
    AISupports training recognition and automatic video tracking functions for models such as ships, personnel, vehicles, drones, birds, etc. in different scenarios, and supports panoramic stitching imaging function
    PTZDrive modeFoc Drive, brushless motor direct drive, support motor encoder abnormal alarm (turntable motor sound output)
    Pan speed0.01°/S~250°/S
    Tilt speed0.01°/S~180°/S
    Pan range360°Continuous rotation
    Tilt range-90°~+90°
    Positioning accuracyCan maintain 0.01 degrees for long time operation
    Gyro Stabilization

    Supports dual-axis gyroscope stabilization, resolution: acceleration: 0.0005g, angular velocity: 0.61°/s

    Measuring accuracy: static 0.05°, dynamic 0.1°

    Communication Control6 groups of serial communication are reserved, which can be superimposed with GPS, Beidou, distance measurement, temperature and humidity sensors, etc.
    Communication protocolPelco, visca, Continuously variable speed and motor control proprietary protocol
    Communication controlSupport joystick keyboard control
    Preset200Presets
    Angle zero calibration

    Support


    Angle returnSupports angle query feedback, real-time fast feedback and specified angle execution functions
    Remote network upgradeSupport
    System parametersPower supplyDC24V/5A
    InstallationFlat base installation
    InterfaceOne 100M adaptive Ethernet port, one DC24V
    DimensionDiameter: 290mm, Height : 480mm
    Weight15kg
    OtherReserved nitrogen filling interface to effectively protect the equipment

    Application of gyro stablization thermal PTZ camera

    gyro stabilization is when information from a gyroscope is used to mechanically stabilize a PTZ camera system. This is done by using the pan/tilt head to counteract movements detected by the gyroscope, reducing the perceived shake and vibration to keep the image stabilized. Common applications are UAVs, vehicle-mounted systems, vessel and ship-mounted systems, and MAST and tower-mounted systems.
