    OKAF 3 to 10m Anti shaking electro-mechanical mast 50kg payload weight

    Ask Lasest Price
    Brand Name : OKAF
    Model Number : OK-Z5/50
    Certification : CE/ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union, D/P, D/A, L/C, MoneyGram
    Supply Ability : 100 units / month
    Delivery Time : 10~15 working days
    • Product Details
    • Company Profile

    OKAF 3 to 10m Anti shaking electro-mechanical mast 50kg payload weight

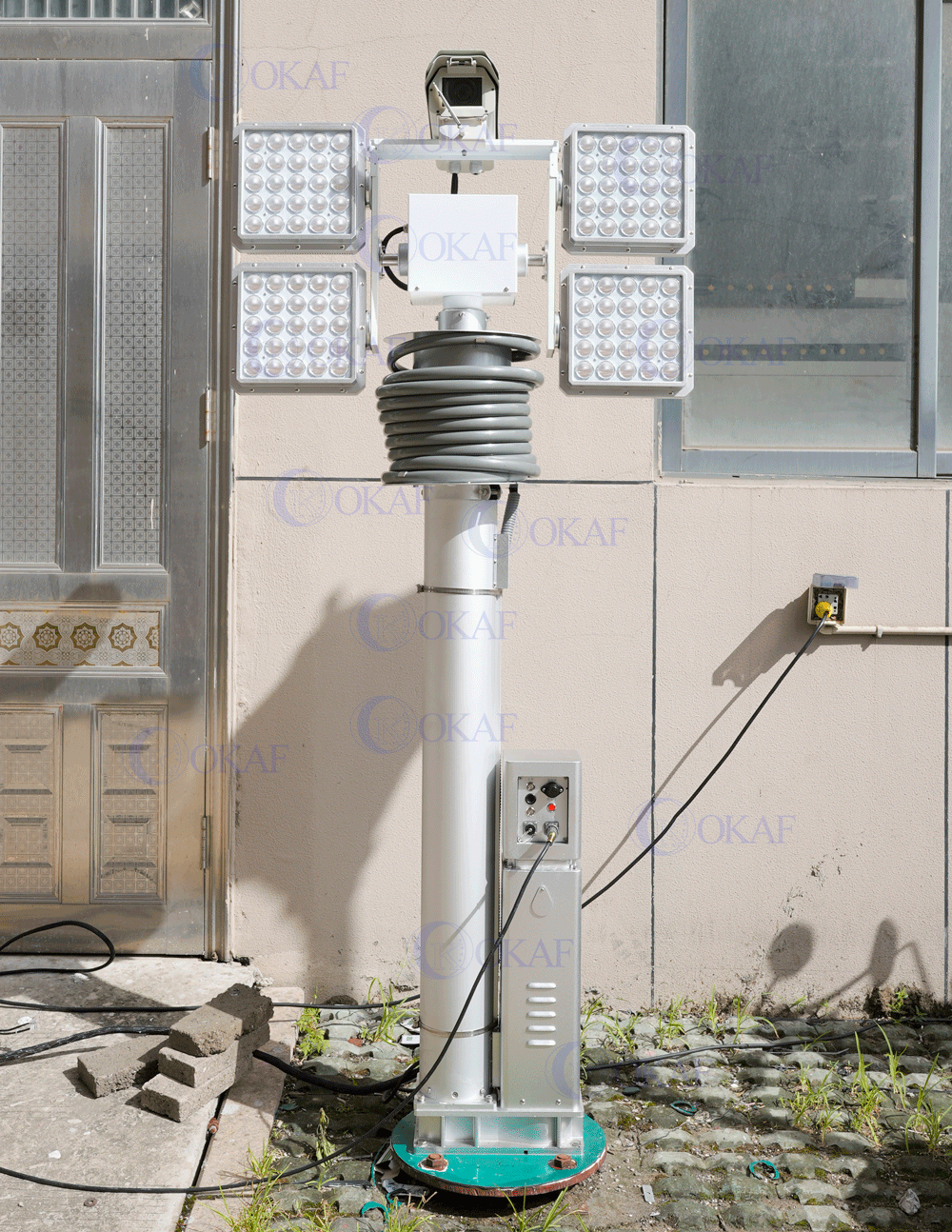

    Motorized mechanical telescopic antenna mast pole

    Electric mechanical mast is a electro-mechanical telescopic mast designed predominantly for use within the defence industry. The mast is driven by an electric motor and lead screw configuration and has provisions to be operated while driving. The mast can be controlled to extend to predetermined heights with the use of the internal encoder.

    OKAF Electric Mechanical Screw Mast Systems are an innovative and unique class of high performing telescopic tower solutions. This series draws from the beneficial attributes of mechanical mast models but introduce and utilize significant new advantages such as specifically their ingeniously designed multi-screw function that facilitates their elevated lift. Fully integrated including totally concealed screw-rods to industrial motor the units feature superior low-profile design. They are weatherproof for operation in the worst environmental conditions.

    This new telescoping tower solution further grants exceptional payload and elevated lift including un-guyed weights to 110 lbs. or heights to over 35 feet not to mention easy operation. The supporting a variety of common electrical power voltages and compact while retracted allows the system to adapt to portable platforms, vehicles or fixed site applications equally

    Advantages of OKAF Electro Mechanical Mast

    1. Electro-Mechanical Multi-Screw Motor Driven Mast.
    2. Fully Internal Lift Mechanism including zero exposure of moving parts.
    3. Fully Internal Lift Mechanism including zero exposure of moving parts.
    4. ALL Models include Auto-limit switches to automatically control max extended and retracted elevations.
    5. All Models include Removable Wired Remote Control and wireless remote control.
    6. Supports Manual Crank for emergency no power scenarios with removable handle.
    7.Standard Models offering Extended Lift to Approx. 8ft, 20ft, 25ft, 30ft, to greater while offering low profile Nested heights
    (retracted)
    8. Light Weight Towers Systems with payloads averaging 60 to over 100 lbs. without guy wire.
    9. electro-mechanical telescopic mast are steady and stable ,No shaking, perfect for equipment requiring high precision,such as cameras and radar.
    10. Ideal for Rapid Response to Long-Term Deployments.
    11. Unfailing System Operation even in Extreme Weather like Freezing or the hottest summer days.
    12.Strong Resistance to Sand, Dust or other High Particle Environments.
    13. Power Input options for 12V, 24V, 48V DC or utility power like AC 110V or 220V etc.
    Technical data
    Model
    Working height(m)
    Retracted height(m)
    Payload weight (KG)
    No.of section
    Max diameter(mm)
    Motor power(W)
    Lifting time(M)
    OK-Z10/50
    10
    2.3
    50
    6
    162
    180
    4
    OK-Z9.5/50
    9.5
    2.2
    50
    6
    162
    180
    3.8
    OK-Z9/50
    9
    2.1
    50
    6
    162
    180
    3.6
    OK-Z8.5/50
    8.5
    2
    50
    6
    162
    180
    3.4
    OK-Z8/50
    8
    1.9
    50
    6
    162
    180
    3.2
    OK-Z7.5/50
    7.5
    1.8
    50
    6
    162
    180
    3
    OK-Z7/50
    7
    1.9
    50
    5
    148
    180
    3.4
    OK-Z6.5/50
    6.5
    1.8
    50
    5
    148
    180
    3.1
    OK-Z6/50
    6
    1.65
    50
    5
    148
    180
    2.9
    OK-Z5.5/50
    5.5
    1.8
    50
    4
    134
    180
    3.2
    OK-Z5/50
    5
    1.65
    50
    4
    134
    180
    2.9
    OK-Z4.5/50
    4.5
    1.85
    50
    3
    122
    180
    3.5
    OK-Z4/50
    4
    1.65
    50
    3
    122
    180
    3.1
    OK-Z3.5/50
    3.5
    1.45
    50
    3
    122
    180
    2.7
    OK-Z3/50
    3
    1.28
    50
    3
    122
    180
    2.4
    OK-Z2.5/50
    2.5
    1.08
    50
    3
    122
    180
    2.1
