Shockproof Car Mounted Full HD PTZ Camera With NVR Screen Joystick

Specifications

• 1/2.8" CMOS 4.7~94.0 mm 20x optical zoom 2.0MP, 1920*1080P. More clear image.

• Acceptable to a variety signals of PTZ ,IP/SDI/AHD/TVI/CVI/Analog.

• Network PTZ supported network and analog dual-outputs, dual control, via RS485 and RJ45 network port.

• With infrared LED range up to 150 meters. It could catch image promptly at night.

• Supporting coordinates and angles to accept instructions.

• Camera with WDR option for better image, WDR( Wide Dynamic Range) 120dB.

• 360°Continuously rotation, no bilnd angle surveillance.

• Vehicle power voltage input range: DC10.5V~DC18V. Perfect for all kinds of vehicle, car, truck and robots.

• Built-in Defrosting and Defogging devices,which ensures the normal use in temperature difference environment.

• High strength alloy aluminum crust, shock resistance, corrosion protection in all weather conditions.

Application

Applicable to the field of Police, highways, urban management , Law enforcement vehicles, fire fighting truck,

Highways,secondary planet communication directorial vehicle, Train and other special vehicle monitoring, Top

Mounting, it can be used to obtain evidence, emergency rescue, scene investigation,Construction work,

accident treatment, rescue and emergency illumination such as in the bad lighting conditions environment.

The complete system

	Vehicle PTZ Camera OK-CT100GR-30IP ♦ High quality video transmission ♦ With infrared led range up to 100 meter. It could catching image promptly at night. ♦ Waterproof design. Die-casting high strength aluminum casing. protection grade up to IP66. ♦ Super shockproof, perfect for kinds of car vehicle surveillance. ♦ 360° horizontal continuously rotation. ♦ Netcom realizes remote real-time viewing, remote dispatching and commanding.
Vehicle Screen with Joystick ♦ Integration of 8" monitor and 4-dimensional keyboard makes it small volume, light weight and superior appearance. ♦ Used for controlling PTZ camera. ♦ 8" LCD resolution:1280*760. ♦ RS485 control output signals, convenient for controlling device near and in distance. ♦ Input signal is 1 channel VGA HD signal and 1 channel BNC analog signal. ♦ Baud rate:1200 bps~9600 bps; Protocol:Pelco_P,Pelco_D. ♦ Supply voltage:AC/DC 9V~12V; Power:25W

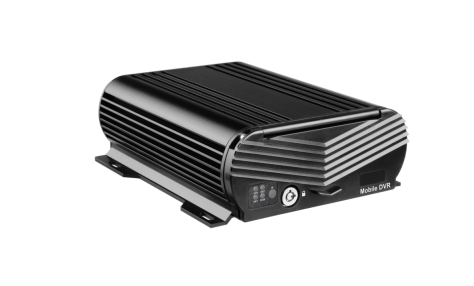

	Vehicle 4 channel NVR • Video Input: aviation connector,digital component signal access.NVR and PTZ camera connect by special aviation cable, support 1 channel 1080P IP PTZ camera input and 4 channel AHD input or analog input. • Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug). • Hard disk drive: support 1 2.5" HDD/SSD with SATA interface. The max. storage is 2T. Support 1 SD card at the same time, the max. storage is 128G. • Network port: RJ45 port / 3G/4G port • GPS Port: Built in GPS for vechile position. • Power Supply: DC 8~36V.
