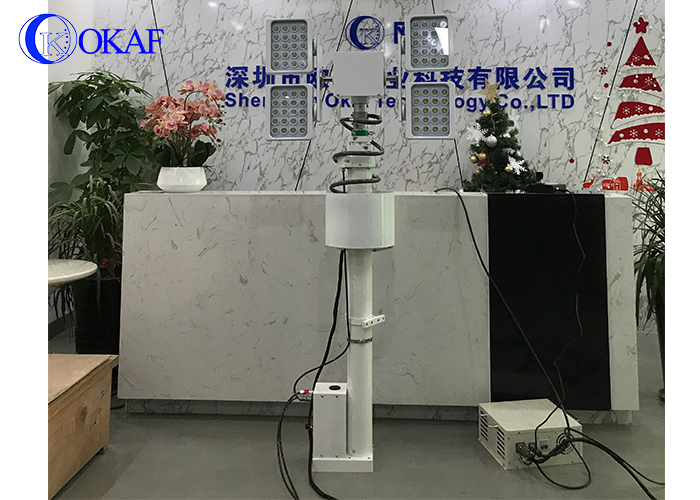

Product feature
1. Lifting rod lighting equipment is driven by trapezoidal screw,
which makes the lifting process stable and reliable,
and has the function of self-locking at any position.
2. Linkage mechanism is realized for each bar body, with short
lifting time.
It can be operated electrically or manually, and it is easy to
operate by hand.
3.Can be through RS485 and wireless remote control to control the rise
and fall, floodlight on and off, the head
around rotation, with a one-key reset function;
4. 480W (4*120W)LED light, featuring high luminous efficiency, good
color rendering and long life, luminous flux up
to 11500Lm/ piece, light source life can be used for more than
100000h; The lighting coverage radius reaches 30~150m.
5. The power supply of the electric lifting lamp can be selected
DC12V, DC24V and AC220;
6. Precise positioning mechanism is used to eliminate the gap
between the rods and ensure the minimum pendulum
momentum and torsion of the rod body when it is in place;
7. The cradle head can rotate at 380 degrees and rotate at 330
degrees up and down;
8. High and low temperature resistance, corrosion and sand resistance.
Parameters
| System operating voltage: | DC12V(customized 24V, AC220V) |
| Light source type: | LED flood light + spotlight |
| Lamp working power: | 120W* 4 |
| Horizontal and vertical rotation speeds: | 6r/min |
| The LED specification: | Lux45mil 120-130Lm/W |
| LED light flux: | Maximum 11,500 (Lumens) |
| Lamp brand: | CREE |
| Horizontal rotation radius of the luminaire: | 410(mm) |
| Horizontal rotation Angle: | 380° |
| Vertical rotation Angle: | 330° |
| Working way | Electric/ manual |
| Horizontal and vertical rotation speeds | 6r/min |
| The control mode | RS485, PELCO-D /P protocol, wireless remote control |
| Material | Aluminium alloy enclosure |
| Security | Stop at any height and lose height indefinitely |
Environmental adaptability
| Project | Test conditions |
The wind resistance | The wind of grade 8 works normally and the wind of grade 12 does
not destroy. 3.13.13 GJB74A - 1998 |
| Low temperature storage | -55°~70° |
| Work in low temperature | -40°~55° |
| Humidity | Less than 90% (temperature 25°) |
| Raining | The intensity was 6mm/min and the duration was 1h |
| Corrosion protection | Refer to GJB150.11A-2009 standard inspection |
| Sand dust | Refer to GJB150.12.1986 standard test |
| The sun's radiation | Refer to GJB150.7.1986 standard test |
| Mold | Refer to GJB150.2.1986 Chapter 2 standard inspection long-mildew
grade 1 |
Telescoping mast reference
| Product model number | Height Extended | Contractile height | Min Pipe Diameter | Max diameter | Wind power | Torsion precision |
| OK-DD3SJ | 3M | 1250mm | ∮52mm | ∮80mm | Level 8 /19 m/s | ≤±2º |
| OK-DD4SJ | 4M | 1350mm | ∮40mm | ∮80mm | Level 8 /19 m/s | ≤±2º |
| OK-DD5ASJ | 5M | 1550mm | ∮40mm | ∮80mm | Level 8 /19 m/s | ≤±2º |
| OK-DD5BSJ | 5M | 1250mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD6SJ | 6M | 1450mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD8SJ | 8M | 1750mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD10ASJ | 10M | 2150mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD10BSJ | 10M | 1850mm | ∮40mm | ∮132mm | Level 8 /19 m/s | ≤±2º |
