Specification

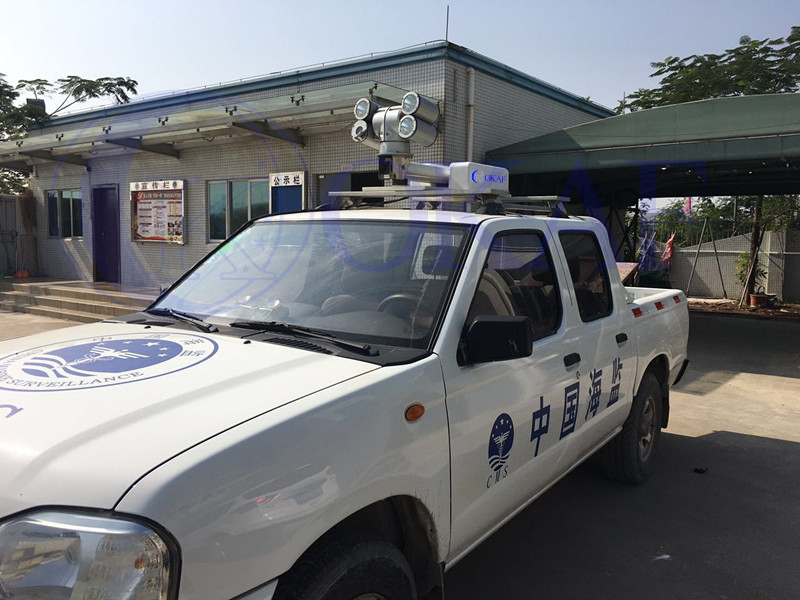

1. It’s designed for emergency lighting purpose, mounted on
vehicles like engineering truck, fire truck, patrol car, ambulance
etc, on the top of mast it can be installed PTZ camera, Antenna and
LED lights and so on
2. The power of the light is 4*150W, total 600W. Optional
power4*120W
4. The extended height of the telescopic mast is 1.8m, 1.2m, 2.5m,
3.5m telescopic mast are available
5. The power supply DC12V or DC24V to suit different kinds of
vehicles which is ideal for those without a generator
6. Make of high intensity aluminum alloy material, Corrosion
protection and rust prevention
7. Wire Control RS485 and wireless remote control
8. It is widely used in the scene of emergency rescue, accident
investigation, rescue and disaster mitigation work, project
emergency lighting, fire emergency lighting, army field work, night
photography scene and mine emergency lighting.
| Model | OK-CZ18SJ4LED |
| Working principle | Worm and gear swooping back mast |
| Extended height | 1.8 meter |
| Pan rang | 0-90° |
| Top payload | 20kg |
| Movement | Arc + vertical |
| Horizontal and vertical rotate speed | 6r/min |
| Ability of resisting wind | 66km/h |
| Control way | Wired & wireless remote control |
| Control protocol | RS485, Pelco-D/P protocol |
| Material | Aluminum alloy |
| Protection grade | IP66 waterproof |
| LED light power | 4*150W |
| Luminous flux | 72000lm max |
| Lights Pan/Tilt rotation | 360 degree horizontal rotation |
| Power supply | DC12V-10A |
