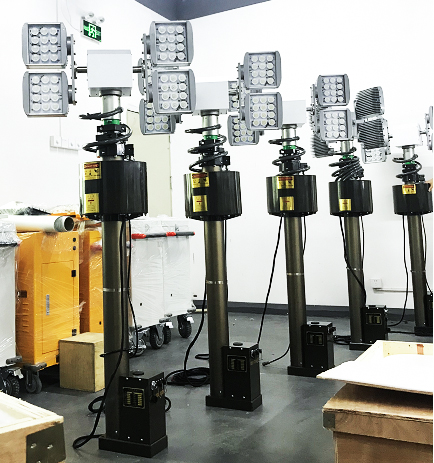

Height 3M-20M Electric Mast Aluminum Alloy Vehicle Mounted Mobile
Electric Telescopic Mast And Pole With Tripod
The product description:
Lifting rod is the carrier of high equipment, suitable for vehicle,
ship or land.It can quickly, reliably and safely raise
communication antenna, lighting, lightning protection, light
transmission and camera equipment to a predetermined height.Upon
completion of the work, the same equipment can be rapidly, reliably
and safely lowered to a predetermined height.The company's manual
lifting rod products are made of high-strength aluminum alloy,
corrosion resistance, light weight, large load, small noise, fast
lifting, small earthquake resistance, stable and other
advantages.In addition, our products are also widely used in golf,
large football field night lighting, etc
The working principle of:
This system USES the electric push rod principle, through the RS485
and the wireless control lifting rod lifting, the self-locking
performance is good, can realize the reliable self-locking in any
position, has enhanced the safe reliability.
Adaptability:
| Project | Test conditions |
| The wind resistance | 8 wind working normally 12 wind does not destroy).3.13.13 GJB74A -
1998 |
| Low temperature storage | -55° |
| Work in low temperature | -40° |
| High temperature storage | 70 degrees |
| High temperature work | 55 degrees |
| Wet degree | Less than 90% (25 ° temperature) |
| Drench the rain | The duration of 6mm/min was 1h |
| Corrosion protection | Refer to gjb150.11a-2009 standard test |
| Sand dust | Refer to GJB150.12.1986 standard test |
| The sun's radiation | Refer to GJB150.7.1986 standard test |
| mold | With reference to GJB150.2.1986 chapter ii standard, grade 1 of
long mildew was tested |
Detailed parameters:
| Way of working | Electric and manual |
| Extension height | 3.5 meters |
| Closing height | 1.4 meters |
| Section number | 4 |
| Max load weight | 50KG |
| Horizontal and vertical rotation speed | 6r/min |
| The wind resistance | 66Km/h |
| The control mode | RS485, Pelco-D/P protocol, wireless remote control and manual
control |
| Material | Aluminium alloy shell |
| security | Any height self - locking off phenomenon |
| System operating voltage | Dc12v-15a (customizable DC24V/AC220V) |
