Electric Power Telescopic Light Mast Aluminum Vehicle Mounted
Telescopic Pole
Features of electric telescopic mast
Telescopic masts perfect for fast deployment of telecommunication ,PTZ camera surveillance ,emergency lighting devices to a certain height in the
air (range from 3 to 20m), which offer an elevation solution with
different payload capacity (range from 2kg -100kg)
OKAF motorized telescopic mast material is aluminum alloy, It is widely applied to radio
facilities, monitoring and illumination systems in public works and
installations, radio amateurs, in metrology and other fields.
What's more, we are able to offer special solutions for
non-standard applications.
Our telescopic mast electric has same advantages as manual telescopic mast, it can be operated
electrically or manually, and it can be self-locking at any
position.
The mechanical nature allows partial extension of the mast when
desired and provides powered retraction for extreme wind or ice
conditions. Long periods of extension are commonplace.the ability
to continue to maintain mast extension is a primary benefit.
On the top there are 4 led lights. We usually provide 4*120W
/4*150W or 4*200W led lights according to customers requirements.
The Luminous flux is more than 48000 lumen.
| Model | OK-DD04SJ-4LED | OK-DD05SJ-4LED | OK-DD06SJ-4LED | OK-DD08SJ-4LED |
| Extended height | 4meter | 5 meter | 6meter | 8meter |
| Retracted height | 1.4m | 1.6m | 2.5m | 1.8 |
| Maximum diameter | 80mm | 80mm | 106mm | 106mm |
| Minimum diameter | 40mm | 40mm | 40mm | 40mm |
| Top payload | 25kg | 25kg | 20kg | 20kg |
| Number of sections | 4sections | 4sections | 6 sections | 6 sections |
| Light power | 4*120W 4*150W 4*200W | 4*120W 4*150W 4*200W | 4*120W 4*150W 4*200W | 4*120W 4*150W 4*200W |
| Wind power | Level 8/19m/SEC |
| Torsion precision | ≤±2º |
| Power supply | DC12V /DC24V for all kinds of vehicles/ trucks/trailer |
| Installation | Vehicle mounted / ground mounted by tripod |
| Control way | RS485 wired or wireless remote control |
| Low temperature storage | -55℃ |
| Low temperature work | -40℃ |
| High temperature storage | 70 ℃ |
| High temperature work | 55℃ |
| Humidity | Relative humidity 90%(temperature 25℃) |
| Rain | 6mm/min continuous 1h |
| Rated load | Lifting ≤120N |
| Lifting speed | Average speed 4m/min |
| Safety | Self-locking at any height |
| Accessories | Flange, Guy wires, ground anchors |

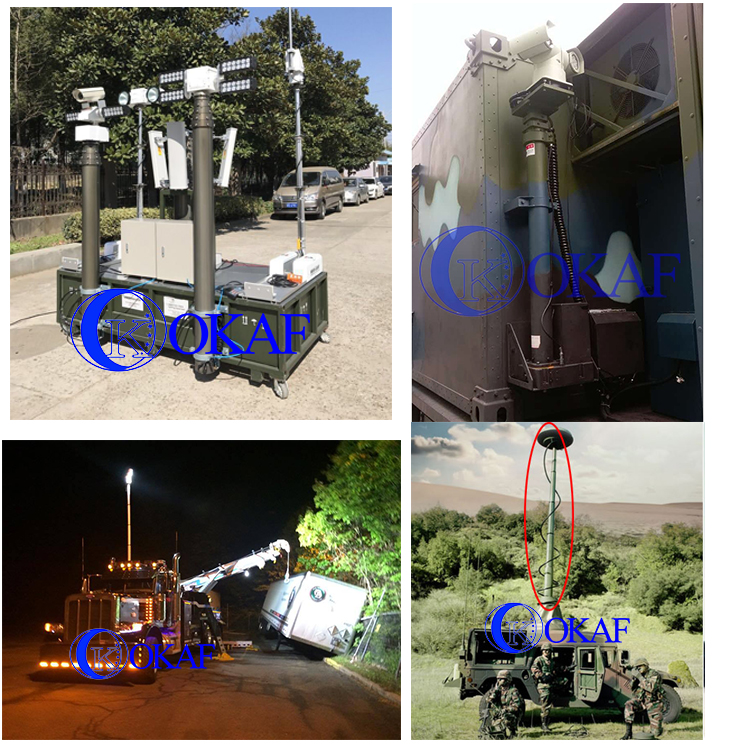

Application of electric telescopic light mast
OKAF electric mechanical telescopic masts suitable for mounting
lights. Our lighting masts have been in service with many of the
world’s fire, and government organisations for many years.
Our portable mast range is commonly used for temporary lighting
applications.
