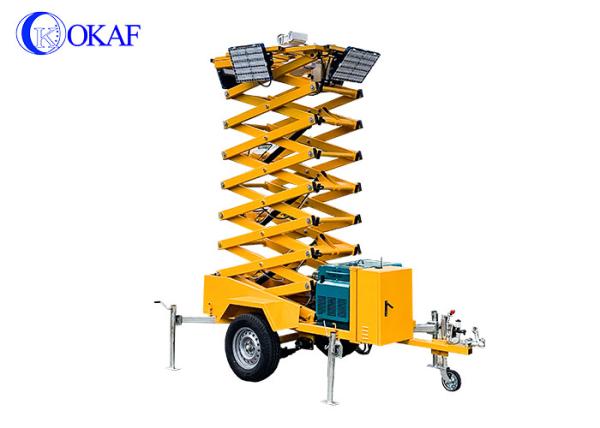

Diesel Generator Mobile Light Tower Auto Lifting Portable LED Light
Tower
Product Features
OKAF Portable LED Light Tower composed of super bright LED lights, vehicle PTZ camera, lifting
system, transmission system, diesel generator and trailer body.
Easy to install, easy to operate, integrated design, flexible body,
with drag tire, easy to deploy and move; integrated outrigger, easy
to fix.
The system is 360° no blind lighting & monitoring two in one
design. The convenience of its movement can be used in different
scenarios according to needs. So it is favored by many companies in
the field without electric power construction projects. According
to different application site and requirements, we could customize
different kinds emergency lighting trailer.
System running time: You can directly use the generator set for power supply, or you
can switch on the 220V mains for a long time. The generator can be
used to supply fuel and the continuous working time can reach 12
hours.
System Operations: The wireless remote control can control the opening and closing of
each lamp within 50 meters.
Why OKAF Mobile Light Tower ?
♦ No need to set points and wiring, reduce the cost of deployment.
♦ No need to disassemble,easy to use and operate.
♦ 5KW big generator, system could run more than 13 hours after full
filled with fuel.
♦ Lighting and surveillance integrated. HD IP PTZ camera
1920*1080P, 2.0MP, Real-time video and voice viewing & recording.
360° no blind surveillance and illumination.
♦ High brightness, wide range lighting. Use 4*500W total 2000W
super bright led lights, lamp pole 10 meter, Large irradiation
area.
♦ Thickened metal body, galvanized rust-proof bracket, more durable
equipment.
♦ 4G/ GPS function. View the video through the mobile phone or
computer, playback video.
♦ Rapid deployment. One can complete the system within 5 minutes to
meet emergency need.
♦ Humanized design and easy operation. Auto lifting telescopic
mast.With control system to control lamp pole up and down, as well
as led lights on/off.
♦ System Waterproof. The trailer body and led lights protection
grade up to IP65 waterproof.
Applications of the Diesel Generator Mobile Light Tower
OKAF Mobile Lighting Trailer is widely applied to on-site mobile
lighting for emergency rescue, emergency repair. The light tower is
including 2 or 4 wheels, anti overturning bracket and generator as
power. The trailer pole can be raised and lowered by winch or
hydraulic device. Lamps are placed on the vertical pole, and each
lamp can rotate horizontally so as to illuminate in multiple
directions.
Technical data
Lighting
| Power | 4*500W total 2000W |
| Working voltage | AC220V |
| Luminous flux | 240000 lumen |
| Color Temperature | 6000K, white light |
| Life span | 50000h |
| Projection grade | IP65 waterproof |
| Generator | Phase | 2 compartment (308V/220V) |
| Rated power | 5KW |
| Rate of frequency | 50Hz |
| Fuel tank capacity | 14L |
| Full oil continuous operation time (hours) | 9h |
| Noise level | 70DB |
| Engine protection | Low oil pressure and high water temperature |
Camera | Camera type | Infrared IP Network PTZ camera |
| Pixel | 2.0 megapixels |
| Resolution | 1920*1080 @ 30fp |
| Optical zoom | 20x /30x optical zoom optional |
| Camera rotation angle | 360° horizontal continuously rotation |
| -15°~ +90°Vertical rotation |
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) |
Video Transmission & storage
| Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event
triggered full-screen display function |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P |
| Audio input | 4channel, Aviation interface |
| Audio output | 1channel |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power
off, etc. |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising
screen, etc. |
| 2 way 485 interface, can extend PTZ |
| 2-way CAN bus interface |
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA,
CDMA2000,TD-SCDMA compatible GPRS, EDGE |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE |
| Position | Support built-in GPS / BD module, can report to the platform |
| Hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) |
| Input voltage | DC+8V ~ +38V |
| Trailer(Tower) body & mast | Body color | Yellow (could be customized) |
| Extended Height | 10m |
| Lifting way | Hydraulic |
| Trailer and enclosure | 5 point support |
| Tires and rims | R13/165 or R14/185 or higher |
| Trailer shock absorption system | Steel plate shock absorption |
| Brake | Impact brake/handbrake |
| Trailer style | Ring or ball |
| Lifting speed | Average speed 0.06M/s |
| Project | Test conditions |
| Wind power | Class 8 winds work normally Class 12 winds are not destroyed |
| Low temperature storage | -55℃ |
| Low temperature work | -40℃ |
| High temperature storage | 70℃ |
| High temperature work | 50 ℃ |
| Humidity | Less than 90%( temperature 25℃) |
| Rain | 6mm/min continuous 1h |
| Rated load | Lifting ≤120N |
| Safety | Self-locking at any height |
