    Aluminum Alloy Vehicle Mounted Mast Mobile Pneumatic Light Tower For Fire Truck

    Ask Lasest Price
    Brand Name : OKAF
    Model Number : OK-QD55G-4LED
    Certification : CE ROHS FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 1000 units/month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Aluminum Alloy Vehicle Mounted Mast Mobile Pneumatic Light Tower For Fire Truck

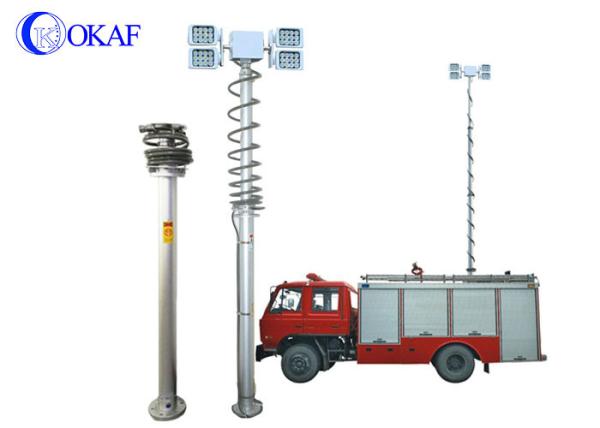

    5.5m Vehicle Mounted Telescopic Mast Mobile Pneumatic Light Tower for Fire Truck


    Specifications

    ♦ The Vehicle Mounted Telescopic Mast / Lighting Mast has been designed for using in the kinds of conditions.

    ♦ The Vehicle Mounted Masts have many practical applications and are currently used extensively in the Police and Fire Services, Command Vehicles and Commercial Industries.

    ♦ Our Vehicle Mounted Telescopic Mast could be with a range of equipment including ptz cameras, sensors, antennas, beacons and lighting units.

    ♦ The telescopic mast can be quickly installed on kinds of vehicles. The extended height from 3 to 18 meter are available.


    Standard Telescopic Light Mast Feature

    • The Car Mounted Telescopic Lighting Mast comes complete with Pan & Tilt light head, with 2 or 4 LED lights.

    • Control and vehicle voltage lighting cables are attached the mast on 12 & 24V lighting system.

    • The Vehicle Telescopic Lighting Mast is also available in 24V for Commercial Vehicle applications such as Fire Appliances and Incident Command Vehicles.

    • With the function of up, down, rise and drop, the equipment can lift by wired or wireless remote control. The control protocol is RS485.

    • The 5.5 meter telescopic mast top payload up to 80kg.

    • The protection grade is up to IP66.


    Technical data of telescopic mast

    ModelRetracted height(mm)Extended height(mm)Maximum diameter(mm)Top payload(kg)Number of section
    OK-QD-35G-01164935001331203
    OK-QD-45G-01168445001331004
    OK-QD-55G-01179955001331004
    OK-QD-65G-0117926500133805
    OK-QD-75G-0118117500160806
    OK-QD-85G-0123008500140405
    OK-QD-90G-0422009000160406
    OK-QD-100G-04220010000160406
    OK-QD-110G-04240011000160406
    OK-QD-120G-01240012000180407
    OK-QD-150G-01290015000202408
    OK-QD-180G-01340018000202707
    OK-QD-200G-01330020000229708

    The projects we have helped to make



    About Shenzhen OKAF

    Shenzhen Okaf Technology Co., Ltd is a professional manufacturer of vehicle PTZ Camera, 4G deployment dome camera, telescopic mast since 2005. Our products have been widely applied to police dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.

    FAQ

    Q1: What's the advantages of the pneumatic telescopic mast ?

    A1.

    ♦ Wide range application. Suitable for vehicle, vessel and ground systems.

    ♦ Fast lifting. Within 1 minute to raise the telecommunication antennas, led lights,mobile surveillance PTZ Cameras and Lightning protection rod.

    ♦ Stable and safety. The mast is high strength, it can work during the 8 degree wind. With the tripod, it can stand well on the ground.

    ♦ Long life span. The aluminum mast is anti corrosive which can long last many years.

    ♦ Customized available. The height, payload and function can be customized according to your requirement.

    Q2. Can I have a sample first ?

    A2: Sure. We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the shipping cost.

    Q3. How to order ?

    A3: Please contact our sales person first for the order destails. Once the order confirm, we will send you PI. You could pay by TT, Western union, Paypal etc. We will arrange production and shipment after get the payment.
