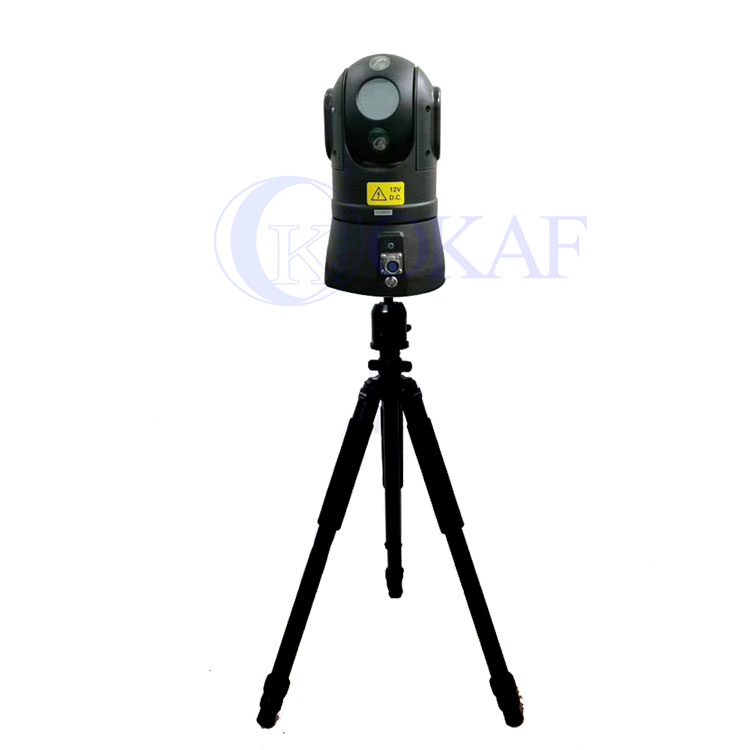

4G HD Deployment Portable PTZ Camera with Tripod and Suitcase
Features
♦ Magnesium alloy housing, lightweight, waterproof, protection
grade up to IP66.
♦ High definition image, 1080P, 2.0Magepixel.
♦ Support 4G SIM Card, WIFI and GPS function, built in antenna.
♦ High performance video code.H.264 /H.265.
♦ Support TF Card, Max storage 128G, higher storage space, more stable network.
♦ Built in battery for power supply,working time 8 hours after full charge.
♦ Magnet suction cup quick installation, Can be removed at any time.
♦ Support tripod fast roadside placement.
♦ Support intercom, support Audio monitoring.
Specifications
The ptz camera material is magnesium alloy which is shock
resistant, impact resistance and corrosion prevention. The product
has a fall protection design which is more safety. Lithium battery for power supply, and Strong magnetic chassis design, easy to
install. The latest design process can effectively prevent fogging; equipped with high-performance infrared lamps, the irradiation
distance can reach more than 50 meters.
Extensibility: Developed SDK for secondary development.
Flexibility: Dual platform access, OKAF Police Platform and OKAF Dynamic Forensics Platform.
Peripheral access: support connect police body camera, 4G rapid deployment system, police dynamic forensics connection.
Waterproof, dustproof and drop resistant, suitable for all-weather field
work.
Technical Data
| Model | OK-CQ60DM-20IP-2-4GWG |
| Camera | Image sensor | 1/2.8type EXmor CMOS |
| Pixel | 2.0 Megapixel |
| Resolution | 1920(H)×1080(V) |
| Illuminance | 0.1 lx (F1.6, AGC is turned on, 1/30 sec) |
| 0.008lx(ICR-ON;1/30sec) |
| Lens | 20x optical zoom |
| Focus | f=4.7mm( Wide angle end ) ~94.0mm( remote end ) |
| Parameter adjustment | White balance, automatic gain control AGC, backlight compensation
BLC |
| Signal to noise ratio | ≥50db |
| Electronic shutter | 1/1 s- 1/10,000 s |
| Port function | Network Interface | 10BaseT / 100BaseTX, RJ45 |
| Cellular and wireless networks | 802.11a/b/g/n |
| WCDMA, |
| TD-SCDMA |
| 4G LTE |
| Network protocol | IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP,
ICMP |
| Video | Video compression | H.264 |
| Image Resolution | 25/30P |
| 1080P |
| Multi-stream | HD + D1 |
| Rate control mode | VBR/CBR |
| Data transmission and storage |
| Data storage | Automatic / manual recording, support TF card |
| Night vision | IR light | 850nm IR light |
| Night vision | 60M |
| Movement parameters | mechanical character | Horizontal range | 360° |
| Horizontal speed | 0-120°/S |
| Vertical range | -15°~+90° |
| Vertical speed | 0-60°/S |
| Preset position | 128 preset position |
| cruise | 8 cruises tracking |
| Pattern scanning | 3 |
| IP rate | IP66 |
| Others | Working temperature and humidity | -35°C~+55°C ;98% |
| Power supply | DC 12.6V/ built in battery |
| Battery capacity | 11.1V 10000mAH |
| Power | 25W |
| Weight | 4kg |
