8.5m Vehicle Mounted Telescopic Mast Aluminum Pneumatic Antenna
Pole
What is Pneumatic Telescopic Mast ?
Pneumatic telescopic masts are a type of elevation solution using compressed air to raise the
central column to its extended height. The masts can either be
locking, which each section locks into place once it reaches its
maximum extension - designed for safety and long term use( do not
lift down the mast), or non-locking where each section sits on
cushion of air.
Available Extended height: 3m to 20m can be customized. Head load capacity: 5kg to 120kg.
Lifting is by air compressor. The mobile telescopic mast raised or
down can be controlled by wireless remote control through the RS485 prorocol.
The material is high strength aluminum alloy. The Tube surface treatment is Hard anodizing which is Which again
corrosion, rust and acid rain. It can last longer time even the bad
environment.
Technical data of pneumatic antenna mast
| Model | Retracted height(mm) | Extended height(mm) | Maximum diameter(mm) | Top payload(kg) | Number of section |
| OK-QD-35G-01 | 1649 | 3500 | 133 | 120 | 3 |
| OK-QD-45G-01 | 1684 | 4500 | 133 | 100 | 4 |
| OK-QD-55G-01 | 1799 | 5500 | 133 | 100 | 4 |
| OK-QD-65G-01 | 1792 | 6500 | 133 | 80 | 5 |
| OK-QD-75G-01 | 1811 | 7500 | 160 | 80 | 6 |
| OK-QD-85G-01 | 2300 | 8500 | 140 | 40 | 5 |
| OK-QD-90G-04 | 2200 | 9000 | 160 | 40 | 6 |
| OK-QD-100G-04 | 2200 | 10000 | 160 | 40 | 6 |
| OK-QD-110G-04 | 2400 | 11000 | 160 | 40 | 6 |
| OK-QD-120G-01 | 2400 | 12000 | 180 | 40 | 7 |
| OK-QD-150G-01 | 2900 | 15000 | 202 | 40 | 8 |
| OK-QD-180G-01 | 3400 | 18000 | 202 | 70 | 7 |
| OK-QD-200G-01 | 3300 | 20000 | 229 | 70 | 8 |

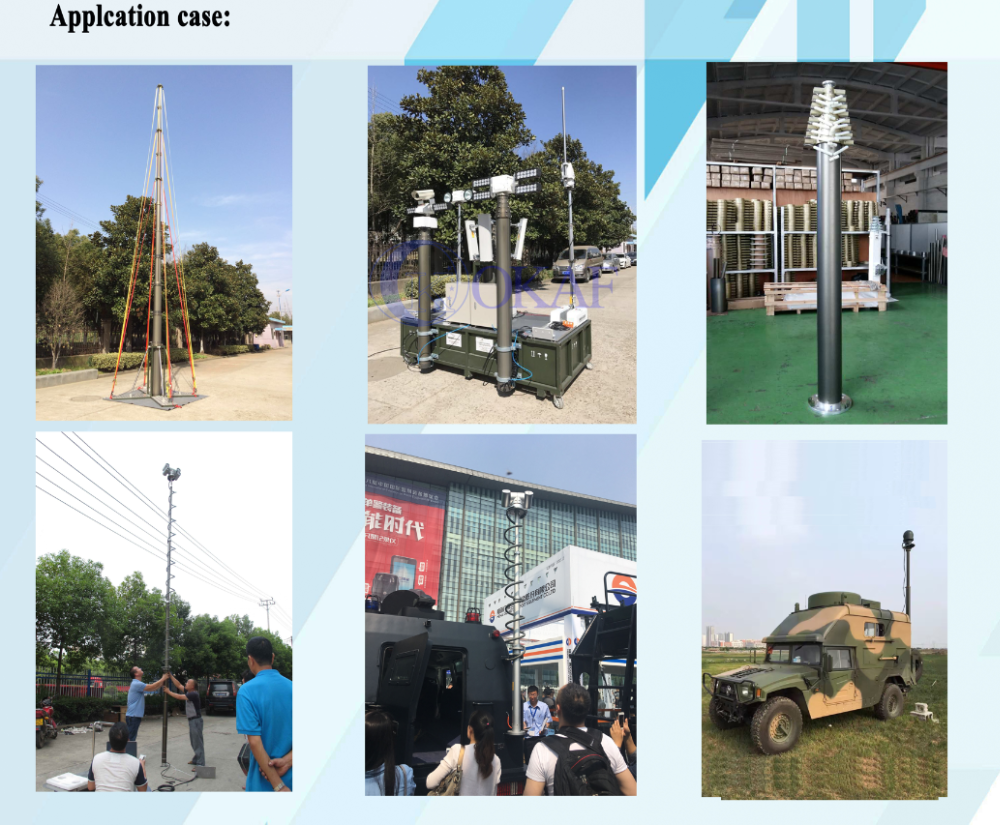

Applications of vehicle telescopic mast
♦ Applied to all kinds of vehicle, fire trucks for
telescommunication or mobile light tower.
♦ On the top of the telescopic mast Mounted the HD PTZ camera for mobile surveillance.
♦ Mounted the antenna to be telescopic antenna mast for telescommunication.
♦ Mounted led lights to be mobile telescopic light tower use on fire trucks for emergency rescue system.
♦ Use on a small trailer to be mobile CCTV Trailer for the construction site or kinds of events surveillance.
