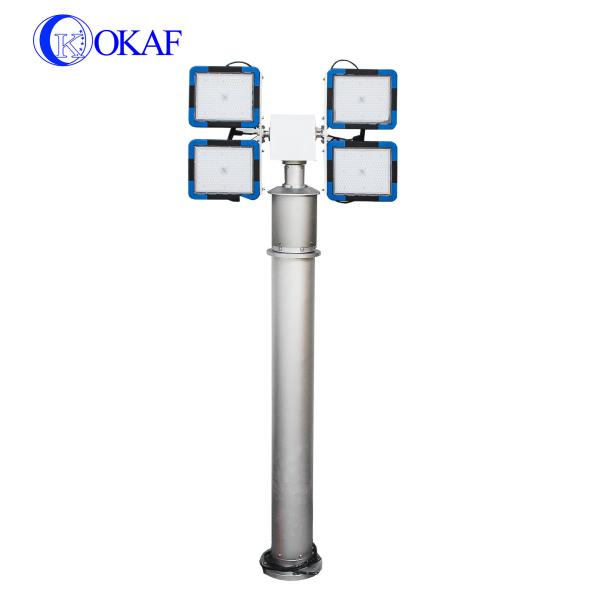

6M Emergency Mobile Lifting Light Aluminum Alloy Ground Mounted
Truck Mount
Product features:
1. 3030-28 pearl super light source lamps are used to provide
all-directional blind spot lighting;
2. Lift the pole 6M (1.8-15m customizable) from the roof when
using;
3. emergency lighting, with a full range of search and lighting
functions.
4. Horizontal and vertical rotation speed: 6r/min horizontal.
5. LED lamp power: 800W(4×200W) light flux: ≈27000LM.
6. On-board power voltage input range: DC12V±10%;
7, dual control, through the wireless remote control and RS485
control lifting rod: rise and fall.Lighting, rotation, and other
functions.
8. The waterproof grade reaches IP66.
9.power protection function. (the positive and negative pole of the
power will not cause damage to the equipment)
10.Rectangular matrix double-layer arrangement is adopted, which is
composed of 2 groups of focusing light and 2 groups of floodlight.
Aluminum alloy one-piece forming shell has the advantages of larger
area, longer distance, more uniform light distribution and better
appearance compared with circular LED lamp holder
Scope of application:
Widely used for all kinds of night operations, such as engineering
emergency repair, disaster rescue, fire lighting, police scene,
on-site accident treatment and other emergency lighting and video
monitoring.
Model | OK-QD06SJ-4LED-800W |
System operating voltage | AC220V(customized dc12-24v) |
Lamp working voltage | AC220V |
The light source type | LED flood light + spotlight |
Lamp working power | 200W*4 |
Speed of horizontal and vertical rotation | 6r/min |
The LED specification | Lux45mil 120-130Lm/W |
The LED luminous flux | ≈27000LM (lumens) |
Color temperature | White is 6000-6500 k |
LED service life | 50000Hr |
Heat dissipation material of lamp | Cold forging high thermal conductivity 1070 aluminum |
The brand of tube |
|
Horizontal rotation radius of luminaire | 410(mm) |
Horizontal rotation Angle | 380° |
Vertical rotation Angle | 330° |
Weight | 90KG(according to different lifting rods) |
Product size:
