    Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole

    Ask Lasest Price
    Brand Name : OKAF
    Model Number : OK-QD10G
    Certification : CE ROHS
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Units/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

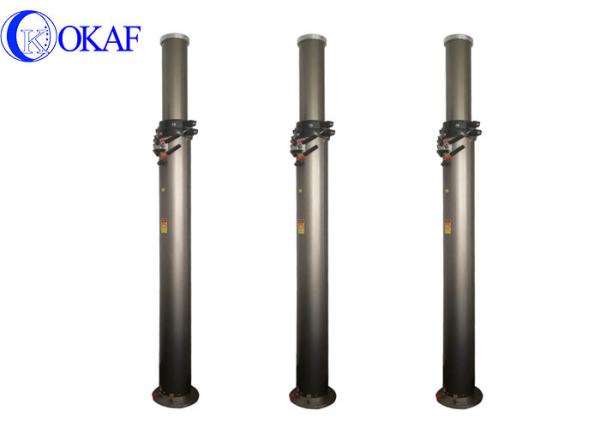

    Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole

    Self locking Telescopic Tower 10m 40kg Payload Aluminum Antenna Mast Pole


    Product specification :

    OKAF pneumatic telescopic mast mast lifter is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting,etc.


    Environmental adaptability
    ItemsTest condition
    Anti-wind capabilityLevel 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).GJB74A-1998 3.13.13
    Low tempertaure storage-55°
    Low tempertaure working-40°
    high temperature storage70°
    high-temperature working55°
    Humidityless than 90%(temperature 25°)
    Exposed to the rainStrength 6mm/min, the time of duration is 1 hour
    AntisepticRefer to GJB150.11A-2009 Standard test
    Dust-proofRefer to GJB150.12.1986 Standard test
    Solar radiationRefer to GJB150.7.1986 Standard test
    MouldRefer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1
    OperatingPneumatic Mast
    Level of rotation speed6r/min
    Vertical of rotation speed66Km/h
    Control wayRS485,Pelco-D/P agreement,remote control
    Materialaluminium alloy
    SecuritySelf-locking at any height; would not fall at any time
    StrapStrap tie every self-lock

    Technical data


    NameModelExtended heightRetracted heightSection numberMaximum
    Diameter
    Top payloadMast Weight

    Self lock pneumatic

    telescopic mast

    OK-QD-100ETX10000mm2200mm6160mm40kg65kg
