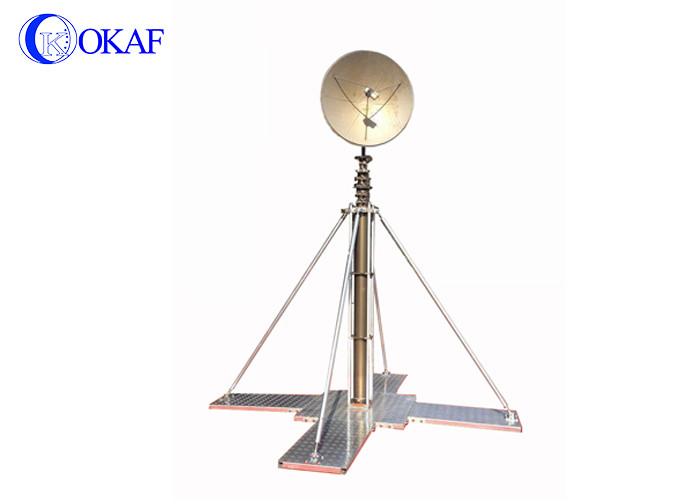

Vehicle-mounted Telescopic Antenna Mast Mobile Pneumatic Camera
Mast Pole Communications Tower
Features:
1. Our pneumatic telescopic mast mast lifter is also a rack height
equipment carrier, suitable for car, ship and land. It can elevate
communications antenna, illumination, lightning shielding, optical
transmission and camera equipment to a predetermined height
quickly, reliably and securely. After the work is completed, it is
also able to reduce the above-mentioned equipment to a
predetermined height quickly, reliably and safely. Our company's
pneumatic telescopic mast lifter is made of high-strength aluminum
alloy, with the advantage of corrosion-resistant, light weight,
large load, low noise, fast lift, small shock resistance, stable
and so on. It could meet different areas, different occasions on
the height and load requirements, in addition, it is also widely
used in golf, large football night lighting, etc.
2. Ground fixation: tripod can be used to fix the telescopic mast
on the ground. Select according to customer requirement.We have two
types of tripods to choose from.
Application site:
1). Inside car installation
2). Outdoor for car installation
3). On ground with tripod installation.
Working principle:
The system uses pneumatic handspike theory.it can use RS485 to
control lifter .Its good self-locking performance achieving
reliable ,self-locking in any position improves the safety of
reliability.
| Operating | Pneumatic Mast |
| Level of rotation speed | 6r/min |
| Vertical of rotation speed | 66Km/h |
| Control way | RS485,Pelco-D/P agreement,remote control |
| Material | aluminium alloy |
| Weight capacity | 10 KG |
| Voltage | DC12V-15A |
| Security | Self-locking at any height; would not fall at any time |
| Tripod | |
| Material | Ferrous material, the inner tube is aluminum alloy |
| effect | Fixed telescopic mast |
| Size | According to the height of the telescopic mast to determine. The higher the level, the bigger the tripod. |
