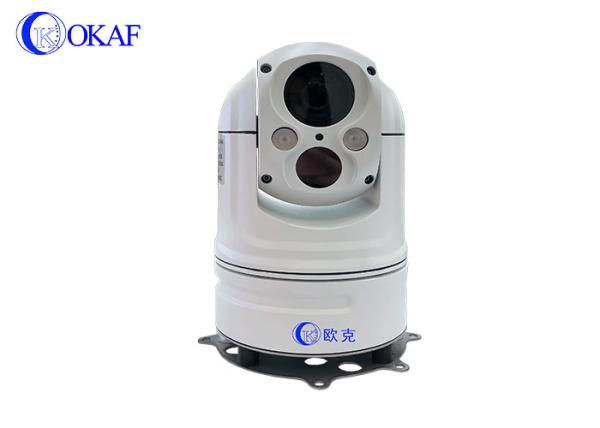

Surveillance Long Distance PTZ Camera Thermal Imaging Pan Tilt Zoom
Day Night
Thermal Camera Features:
These thermal imagers are long wavelength (8-12 micron), infrared
video cameras intended for use in all weather applications.
Visible color day/night cameras are repeatedly rendered ineffective
by low contrast lighting or blooming bright light conditions;
however, Kintronics Thermal Imaging Systems provide unhindered,
real-time scene playback of any security scenario.
All imagers utilize uncooled technology to produce high-quality
imagery for high-security applications. This type of thermal imager
will detect thermal activity in total darkness, through smoke,
dust, blowing sand, fog, and other obscurants.
These thermal Imaging Systems integrate easily into all site
security solutions. We offer several different system controllers,
including the more popular protocols. The open architecture makes
it easy to integrate customizes protocols to meet individual needs.
1. Excellent thermal image effect 384*288 resolution;
2. AGC automatic gain adjustment, 3D noise reduction, DDE image
detail enhancement;
3. Black hot / white hot / iron red / rainbow and other fake colors
(14 kinds of pseudo color adjustable)
4. Support standard ONVIF protocol and support SDK.
Visible light Camera:
1.Resolution 2 megapixel HD, 1920 * 1080P resolution;
2. 20x optical zoom optional.
3.Standard ONVIF protocol. Support H.264 & H.265
Applications include:
Military Bases
Government Installations
Power Plants
Airports
Shipping Ports
Border Security
Refineries
Infrastructure
Mobile Surveillance
Technical data
| Model | OK-CQ70RI-20IP |
| Detector performance |
| Detector type | Uncooled focal plane micro-heat type |
| Pixel | 384*288 |
| Pixel spacing | 25μm |
| Wavelength range | 8-14μm |
| Field frequency/sample frequency | 50/60Hz |
| Lens characteristics |
| Lens | 9mm |
| Field of view /minimum focal length | 30.6°*22.9° |
| Temperature measurement range | -20 ℃ -150 ℃ or 0℃ -550 ℃ , Accuracy : ±0.2℃ . |
| Image performance |
| Spatial resolution | 1.39 mrad |
| Thermal sensitivity | ≤0.06℃@30℃ |
| Focus | Automatic / electric focusing |
| Image display |
| Palette (color scale) | Black hot / white hot / iron red / rainbow and other fake colors
(14 modes) |
| Image Processing | Automatic/manual adjustment of contrast and brightness |
| PTZ characteristics |
| Horizontal preset speed | 120°/S |
| Vertical preset speed | 60°/S |
| Horizontal manual speed control | 0°—60°/S |
| Vertical manual control speed | 0°—40°/S |
| Horizontal angle | 360° infinite rotation |
| Vertical angle | -90°—+90° |
| Preset positions | 256 preset positions, 6 patrol tracks |
| control method | RS485,Built-in 16 protocols,Baud rate is selectable from 2400Bps to
19200Bps |
| Impact resistance requirements | ≥4G |
| Wiper | support |
| Installation method | A variety of installation options are available depending on the
application environment |
| Weight | 7kg |
| Visible light camera and coding |
| Image sensor | 1/2.8" CMOS
|
| Minimum illumination | 0.007LUX |
| Zoom | 20X optical zoom
|
| Focal length | F=4.7-94mm |
| Pixel | 2 megapixel |
| Resolution | 1920*1080P |
| Video compressor | H.264/H.265 |
| Audio compressor | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 |
| Compressed output bit rate | 32Kbps—16Mbps |
| supporting protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6
(SIP,SRTP可选),GB28181 |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
| Communicate Protocol | PelcoD-P |
| Power supply | DC12V input |
| Environmental parameters |
| Operating temperature | -15℃~ +50℃ |
| Storage temperature | 40℃~+60℃ |
| IP rate | IP66 |
