Mobile Solar Trailer Construction Site Monitoring CCTV Camera Tower

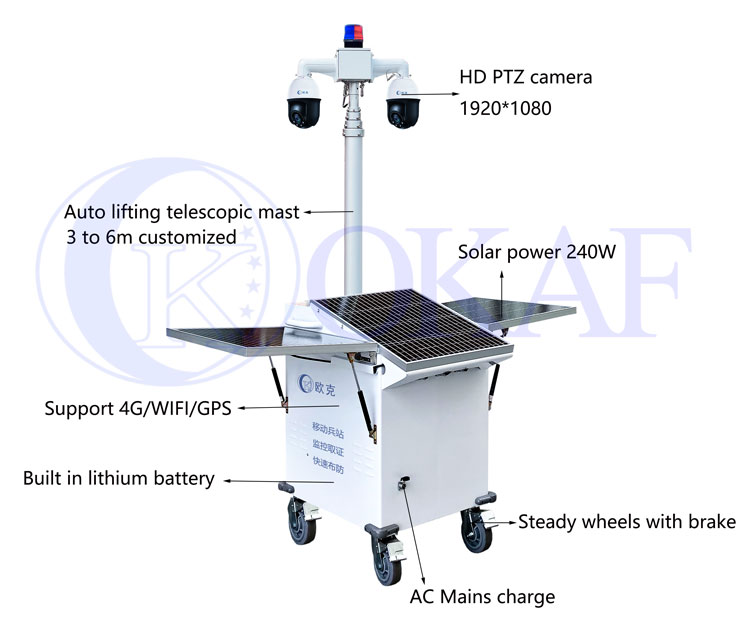

Mobile Solar Trailer System Components:
OKAF Mobile Sentry Security Trailer compose of HD ptz camera, lifting system, transmission system, solar & battery power and trailer. It is convenient to install, integrated design makes
the operation so easy. The CCTV trailer is functional, it comes with the wheels which is ideal for rapid
deployment and movement. Integrated telescopic mast with bracket,
convenient to fix, the surveillance mast can be up and down. The HD 360 degree rotation cameras mounted on the telescopic mast. The system support wifi/3G/4G wireless network transmission. Built in battery, could work 5 to 7 days( according to the battery capacity). Customized function: support pedestrian flow control,Temperature and humidity
monitoring,dust monitoring etc
Advantages of OKAF mobile solar cctv trailer:
• All in one design, no need to disassemble, save cost.
• View HD live video on your cellphone & computer.
• Support two way audio intercom.
• Auto lifting telescopic mast, wider monitoring range.
• easy to install and use, easy to operate.
• Rapid deployment, one person can complete the system erection in
2 minutes,meet emergency need.
• 4G, WIFI and LTN multiple signal transmission modes, data
transmission is safe and smooth.
• GPS positioning, real-time transmission of images.
• Real time video and voice recording.
• Automatic lifting mast, full coverage at high and low levels,
eliminating monitoring blind spots.
• Powerful endurance, the system could run for 5-7 days when full
charge.
• A variety of anti-theft measures, built-in GPS positioning
system.
• Support PTZ control, Keep abreast of the scene environment
anytime.
• Solar power supply ensure the longer life time.
• Support customeized AI function, such as face recognition, safety
helmet detection, mask detection, smoking detection ect.
Technical data
| Camera | Camera type | Network IP PTZ camera |
| Pixel | 2.0MP |
| Resolution | 1920*1080 @ 30fp |
| Optical zoom | 20x /30x optical zoom optional |
| Camera rotation angle | 360° horizontal continuously rotation |
| -15°~ +90°Vertical rotation |
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af |
| Support | People counting |
| Video Transmission & storage | Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event
triggered full-screen display function |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P |
| Audio input | 4channel, Aviation interface |
| Audio output | 1channel |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power
off, etc. |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising
screen, etc. |
| 2 way 485 interface, can extend PTZ |
| 2-way CAN bus interface |
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA,
CDMA2000,TD-SCDMA compatible GPRS, EDGE |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE |
| Position | Support built-in GPS / BD module, can report to the platform |
| Hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) |
| Power supply | Battery | 12v·100Ah/ 12V·200Ah /12V·400Ah |
| Solar | 3*80W total 240W |
| AC Power | AC220V |
| Trailer body & Mast | Material | Metal |
| Extended Height | 3m ( 3 to 9m available) |
| Wind power | 19m/sec |
| Lifting | Manual or pneumatic |

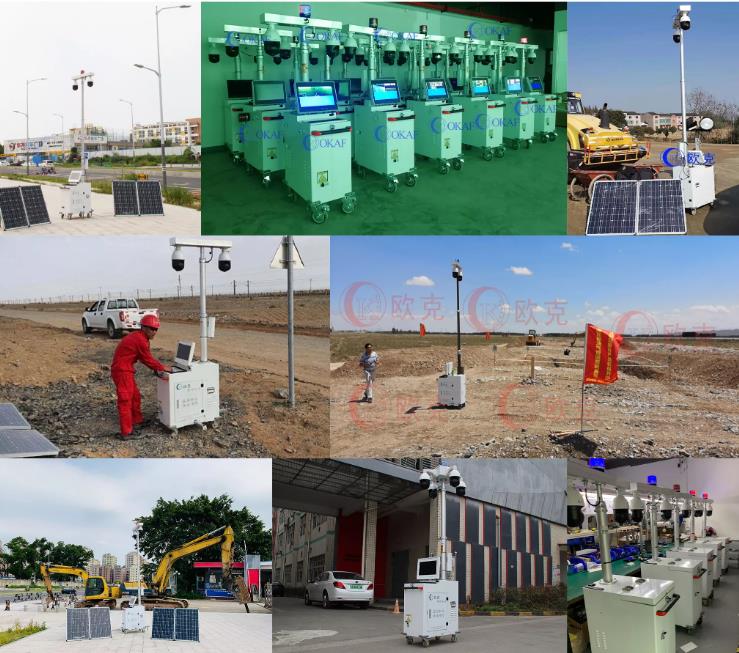

Applications
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Business and parking lot security
♦ Public events safety
