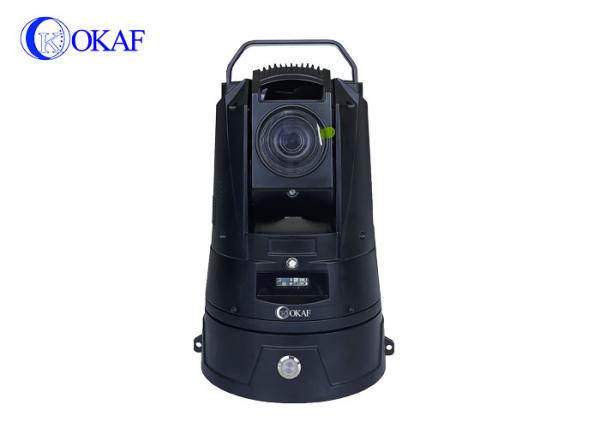

AI intelligent Face recognition 4G Portable PTZ Camera Built in MIC
Specification
OKAF OK-CQ60DM-4G+AI portable intelligent PTZ camera has been
designed for temporary rapid deployment High definition mobile
surveillance. The camera support 4G remote wireless real time
transmission,configure AI smart algorithm: Face recognize, License
Plate Recognition, Reflective vests, Mask detection, Smoking
detection, Safety helmet detection etc function. It provides
ultra-high-definition, smooth and stable video effects for users.
The system realize storage, transmission, positioning, intercom and
other functions, which assist user units in daily visual
inspection, mobile law enforcement monitoring, emergency command
and dispatch, and intelligent application of safe production and
other business management.
Advantages of OKAF 4G+ AI portable PTZ camera
♥ Integrated structure design, protection grade IP66.
♥ Starlight class HD camera movement, 4K ultra-clear movement also
optional.
♥ 50 meters infrared night vision, can realize day and night
deployment control.
♥ 360-degree omnidirectional pan/tilt, support 3D centering zoom
function.
♥ Support 4G remote wireless video transmission, real-time smooth
image.
♥ Dual TF card storage, single card can support up to 256G.
♥ Built-in high-capacity lithium battery, can work continuously for
more than 10 hours
♥ Built-in screen in the fuselage, real-time display of working
status.
♥ Support through Bluetooth communication to realize two-way voice
intercom and cluster intercom.
♥ Support Beidou/GPS dual-mode positioning, built-in antenna.
♥ Support face detection, face recognition, license plate
recognition, reflective clothing, masks, smoking, helmet detection
functions.
♥ Built-in Wifi, you can use mobile phones and tablets to preview
videos.
Technical data
| Video |
| Lens | 2.0MP 20x Optical zoom camera |
| Infrare | 50~60m infrared,Automatic switching between day and night |
| PTZ | Pan: 360°；Tilt -20°~90° |
| Video compressor | H.265/H.264 |
| Stream | Support dual stream |
| Video resolution | 1080P/720P/VGA |
| Bit rate | 64Kbps~10Mbps optional |
| Frame rate | 1~30fps optional |
| Audio |
| Audio input | Built-in microphone, optional wired microphone, Bluetooth
microphone |
| Audio output | Built-in speaker, wired microphone, Bluetooth microphone |
| Encoding algorithm | G711A/G711U/AAC |
| Network |
| 4G | compatible 4G |
| Ethernet | 10/100M Adaptive full duplex |
| WiFi | 802.11a/b/g/n/ac,2.4G&5G |
| Storage |
| Storage medium | Built-in two self-elastic TF card slots, single card supports up to
256G |
| Position |
| Position | Support Beidou and GPS dual-mode positioning |
| Power supply |
| Power input | 13.5V@4A adpter input |
| AI |
| Smart function | Support face detection, face recognition, license plate recognition
and helmet detection |
| General |
| Dimension | 180mm ( Diameter) ×255mm ( Height ) |
| Weight | 4.2kg |
| Protection grade | IP66 |
| Working environment | -25℃-60℃；<98% |
