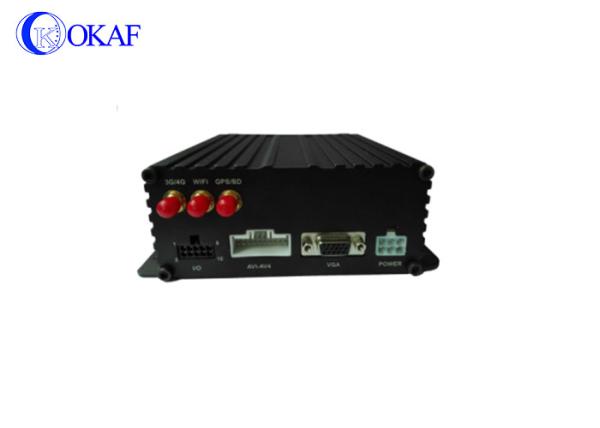

AHD 3G GPS Car DVR Kit , Vehicle Digital Video Recorder Multi Protection Circuits

    Buy cheap AHD 3G GPS Car DVR Kit , Vehicle Digital Video Recorder Multi Protection Circuits from wholesalers

    Buy cheap AHD 3G GPS Car DVR Kit , Vehicle Digital Video Recorder Multi Protection Circuits from wholesalers
    • Buy cheap AHD 3G GPS Car DVR Kit , Vehicle Digital Video Recorder Multi Protection Circuits from wholesalers

    AHD 3G GPS Car DVR Kit , Vehicle Digital Video Recorder Multi Protection Circuits

    Ask Lasest Price
    Brand Name : Okaf
    Model Number : OK-CZ04HVR
    Certification : CE/FCC/RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2500pcs per month
    • Product Details
    • Company Profile

    AHD 3G GPS Car DVR Kit , Vehicle Digital Video Recorder Multi Protection Circuits


    4 Channel Car DVR Kit Cheap AHD 3G GPS Mobile DVR For Vehicles


    Product description:


    1. Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity

    2. 4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output

    3. 4CH local recording with 720P resolution in real time

    Power:

    4. Professional In-Vehicle power design, 10-36V DC Wide Voltage Range

    5. Multi protection circuits like under-voltage, short, reversed plug-in


    6. Smart power management system, shutdown under low voltage, low consumption

    Data Storage:

    7. Special file management system to encrypt and protect the data

    8. Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive

    9. Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage

    10. Support 2.5 inch HDD/SSD, maximum 2TB


    11. Support SD card storage, maximum 256GB

    Transmission Interface:

    12. Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA

    13. Support GPS/BD optional, high sensitivity, fast positioning

    14. Support wireless download by WiFi, 802.11b/g/n, 2.4GHz


    Parameters:


    ItemDevice parameterPerformance
    SystemMain processorHi3520DV200
    Operating systemEmbedded Linux OS
    Operating languageChinese/English
    Operating interfaceGUI, support mouse
    Password securityUser password/Admin password

    Audio

    &

    Video


    Video standardPAL/NTSC
    Video compressionH.264
    Image resolution720P /960H/D1/CIF
    Playback quality720P /960H/D1/CIF
    Compound mode4ch 720P/4ch 960H/2ch 720P+2ch 960H
    Decoding ability1ch 720P real time
    Recording qualityClass 1-6 optional
    Image displaySingle/QUAD display optional
    Audio CompressionG.726
    Audio recordingAudio & Video synchronized recording
    Recording & PlaybackRecording modeManual/Alarm
    Video bit rateFull frame 4096Mbps,6 classes image quality optional
    Audio bit rate8KB/s
    Storage mediaSD card + HDD/SSD storage
    Video inquiryInquiry by channel/Recording type
    Local playbackPlayback by file
    Firmware upgradingUpgrading modeManual/Automatical/Remote/Emergency Recovery
    Upgrading methodUSB disk/Wireless network/SD card
    InterfaceAV input4ch aviation interface
    AV output1ch VGA video output, 1ch aviation AV output
    Alarm input4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)
    HDD/SSD1 HDD/SSD (up to 2TB, support hot plug/unplug)
    SD card1 SDXC High speed card (up to 256GB)
    USB interface1 USB 2.0 (support U disk/mouse)
    Ignition input1 ACC signal
    UART1 LVTTL Level
    LED IndicationPWR/RUN
    Disk lock1
    Debug port1
    Function extentionGPS/BDSupport detecting antenna Plug in/Unplug/Short circuit
    3G/4GSupports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
    WIFI802.11b/g/n, 2.4GHz
    OthersPower input10~36V DC
    Power output5V 300mA
    Power consumption

    Standby 3mA

    Maximum consumption 18W @12V 1.5A @24V 0.75A

    Working temperature-20 --- 70℃
    Storage

    720P 1G/h/channel

    960H 750M/h/channel

    Dimension162mm*153mm*52mm
