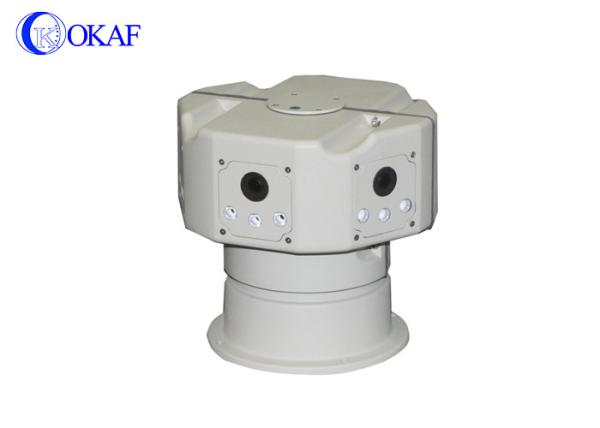

Intelligent Vehicle Infrared CCTV Camera Omni - Directional 360 Degree Viewing

Product Categories

Shenzhen Okaf Technology Co., Ltd.

Contact Now

Name: Intelligent Vehicle Infrared CCTV Camera Omni Directional 360 Degree Viewing
Brand: Okaf
Price: 1 USD

Ask Lasest Price
Brand Name :	Okaf
Model Number :	OK-CQ360IR-20IP
Certification :	CE/FCC/RoHS
Price :	Negotiable
Payment Terms :	T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability :	2500pcs per month

Add to Cart

Intelligent Vehicle CCTV Camera Omni-directional 360 Degree Infrared Camera

Product description:

1. High strength aluminum alloy crust, shock resistance, corrosion protection in all weather conditions

2. IP level reaches IP66

3. Super seismic characteristics, this system is especially good for vehicle monitoring or prison monitoring.

4. IR distance 30m

5. Integrated omni-directional 360 degree monitoring without blind spot

6. IR light working current: 1.5A

7. Imaging sensor:1/2.8”“EXMOR”CMOS*6

8. Effective pixels: about 2MP*6

9. Power:30W

10. Weight:3.3KG

11. Power supply:DC12V±10%

12. Operating temperature:-35℃~+55℃

Parameters:

Model No.	OK-CQ360IR-20IP
system structure	Embedded RTOS design, dual-core 32-bit DSP (Hi3518C), pure hard compression, watchdog
Imaging sensor	1/2.8"SONY IMX138 CMOS sensor; Support day and night conversion (support optional IR-CUT) infrared, support photosensitive signal linkage, support CS interface lens, color 0.01Lux@F1.2, black and white 0.001 Lux@F1.2
Video processing	H.264 video encoding, support dual stream, AVI format; support stream 0.1M ~ 6Mpbs adjustable; support frame rate of 1 to 30 frames / sec adjustable;
Image output	Main stream:1920*1080
Network Interface	1 RJ45 Ethernet interface, 10 / 100M adaptive; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP and other network protocols;
Infrared wavelength	850nm
Function	Support WEB configuration, support OSD, support real-time video transmission, support mobile detection, support mobile detection alarm center reminders and pop-up linkage; support JPEG capture; support unified client remote monitoring software, MYEYE platform and other system applications;
ONVIF Protocol	Support
Exposure	automatic
Gain control	automatic
White balance	automatic
diaphragm control	DC / video driver
light source	Infared light X6
IR distance	30m
IP level	IP66
Material	Aluminum die casting
Weight	3.3kg
Power supply	DC12V±10%
Working environment	-35℃~+55℃
