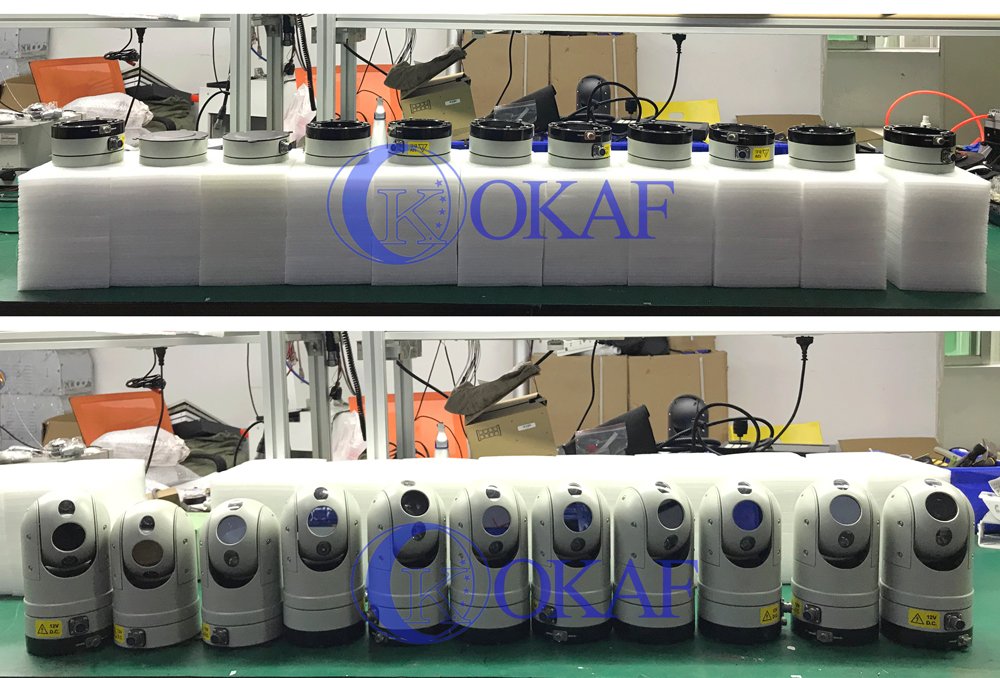

Roof Mounted Vehicle PTZ Camera Infrared Dome IP Mini With High
Defination
Specifications:
| PTZ Camera Parameters |
| Pan preset speed | 120°/S(manual control 0°～80°/S) |
| Tilt preset speed | 60°/S(manual control 0°～40°/S) |
| Pan range | 360° |
| Tilt range | ＋90°～－90° |
| Electric machinery | stepping motor (belt gearing) |
| Preset positions | 256 Preset positions |
| Control Way | RS485 |
| Baud rate | 2400Bps~19200Bps |
| Control protocol | Pelco-D/Pelco-P |
| Chroma | 850nm |
| Distance | 50m |
| Infrared light | 3W*2 |
| Audio input/output | Support |
| Alarm Input/ Output | Support |
| Operating temperature | －35°C~＋65°C |
| IP Grade | IP66 |
| Power Supply | DC10.5V~DC16V(3A) |
| Weight | 2KG(net weight) |
| Network Movement |
| Model | 20IP | 30IP |
| Imaging sensor | 1/2.8inch “Exmor”CMOS | 1/2.8inch“Exmor”CMOS |
| Effective pixels | 2.1 mega pixels | 3 mega pixels |
| Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X optional) |
| Min.illumination | 0.095 lUx (F1.6,ICR open) |
| Frame rate | 25FPS & 30FPS |
| Double stream | H.265/H.264 |
| SDK Docking | standard ONVIF protocols,Support SDK secondary development |
| SDI/AHD Movement |
| Model | SDI | AHD |
| Imaging sensor | 1/2.5inch CMOS | 1/4inch CMOS |
| Effective pixels | 30X 3 mega pixels (decided by movement) | 36X 2 mega pixels (decided by movement) |
| Frame rate | 60FPS & 30FPS | 30FPS |
Product description:
1. PTZ camera:
HD IP infrared vehicle PTZ camera, Pan range: 360°continuously
rotation, Tilt range: 180°. Built-in thermostat and defogging
devices, large power LED light source. IR distance: 50M at night.
2MP 1080P high definition, 20X optical zoom camera movement. Double
ICR filter switch, automatic focus.
2. Vehicle intelligent terminal:
All interface adapts aviation integration interface, simple and
safe. H.264 video compression format, the compression ratio is
high, the image is clear. Support 4CH 1080P HD video input; support
3G, 4G, built-in GPS, intercom etc; support hard disk, max. 2T;
Support WIFI extension; support automatic upload video instead of
backup by people.
3. Control and display system:
The two-in-one design of keyboard and moniter is easy for
installation and easy for controlling PTZ.It could control wiper
and IR lights on/off by shortcuts. It’s saving space and install
conveniently with few cables.
4. Mounting bracket:
Applicable to Pickups, Minibus Santana 2000, Passat, Changfeng
Cheetah, Wuling van, Mitsubishi off-road vehicles, BYD electric
carsand so on, according to customer requirements to be customized.
5. Application areas:
Applicable to the vehicle of road administration, traffic
police,Public security and communications command( road, highway,
fishery etc.)and other special purpose vehicle monitoring.can be
used for forensic, emergency Rescue, field survey, construction
operations, accident handling, emergency repair and other lighting
conditions under poor environment.
