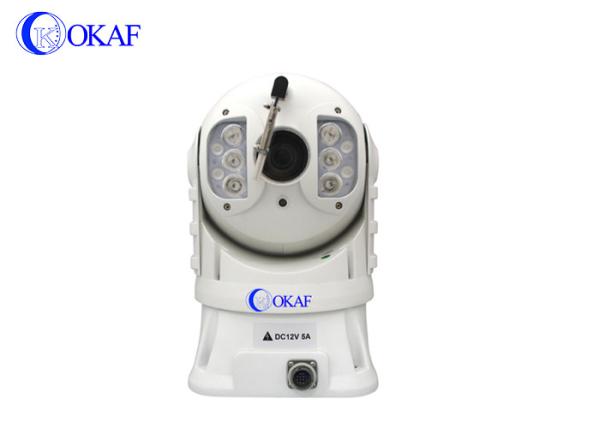

20X Optical Zoom Full HD PTZ Camera Water-Proof IP/SDI/AHD/Analog
IR
Dome PTZ For Safe City
Product description:
1. Alloy aluminum crust with high strength;
2. Powerful aux IR system, range up to 100~130 meters;
3. Infrared or White Light, optional.
4. High Beam & Low Beam Settings for both Lighting Models
5. Model with Infrared Lights will automatically turn on Lamps in
low light settings, and can be automatically switched from Low to
High Beams, depending on Camera Zoom distance.
6. IP index up to IP67, full weather proof;
7. New design of drive system, PTZ positioning precision up to
+/-0.05°;
8. Image flip for stand / ceiling mount;
9. Wide Voltage Range – perfect for Mobile applications (12-24V DC
)
10. Multiple video output formats,IPC,HDSDI,Analog camera, etc.
11. Optional wiper, shock absorber,anti-shock;
Parameters:
| OK-CQ100DM |
| Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS,2MP |
| Lens | 4.7~84.6mm,20x optical zoom |
| Focus mode | Auto |
| Shutter | Auto/Manual; shutter time: 1/5 s ~ 1/5000 s |
| Minimum Illumination | Color: 0.2lux @(F1.2,Color) B/W: 0.02 lux @(F1.2, White) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Video |
| Max. Resolution | 1920x1080 |
| Video Compression | H.264 |
| Frame Rate | 1080P (1920*1080) |
|
| Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SI |
| Compatible Integration | ONVIF2.4, GB/T28181 |
| Pan&Tilt |
| Pan Range | 360°endless |
| Pan Speed | 0.05°~80° |
| Tilt Range | -30°~40° (-20°~90°) |
| Tilt Speed | 0.5°~60° |
| Number of Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Pattern | 4 , with the total recording time not less than 10 minutes |
| Power loss recovery | Support |
| Infrared (WHITE LIGHT OPTIONAL) |
| IR Distance | 130m |
| IR Angle | Adjustable by zoom |
| General |
| Power Supply | DC 12-24V |
| Power consumption | 35 W(light on) |
| Dimension | Without damper:Φ192(mm)×315(mm) With damper:Φ192(mm)×351(mm) |
Working Environment | -40 °C~65° |
| Weight | 6.4kg(without damper)；7.8kg(with damper,with cable) |
| Ingress Protection | IP 67 |
| Wiper | Optional |
